| PNC | Partcode | GM onderdeelnummer | Titel | Aantal stuks | Informatie |
i |
|---|

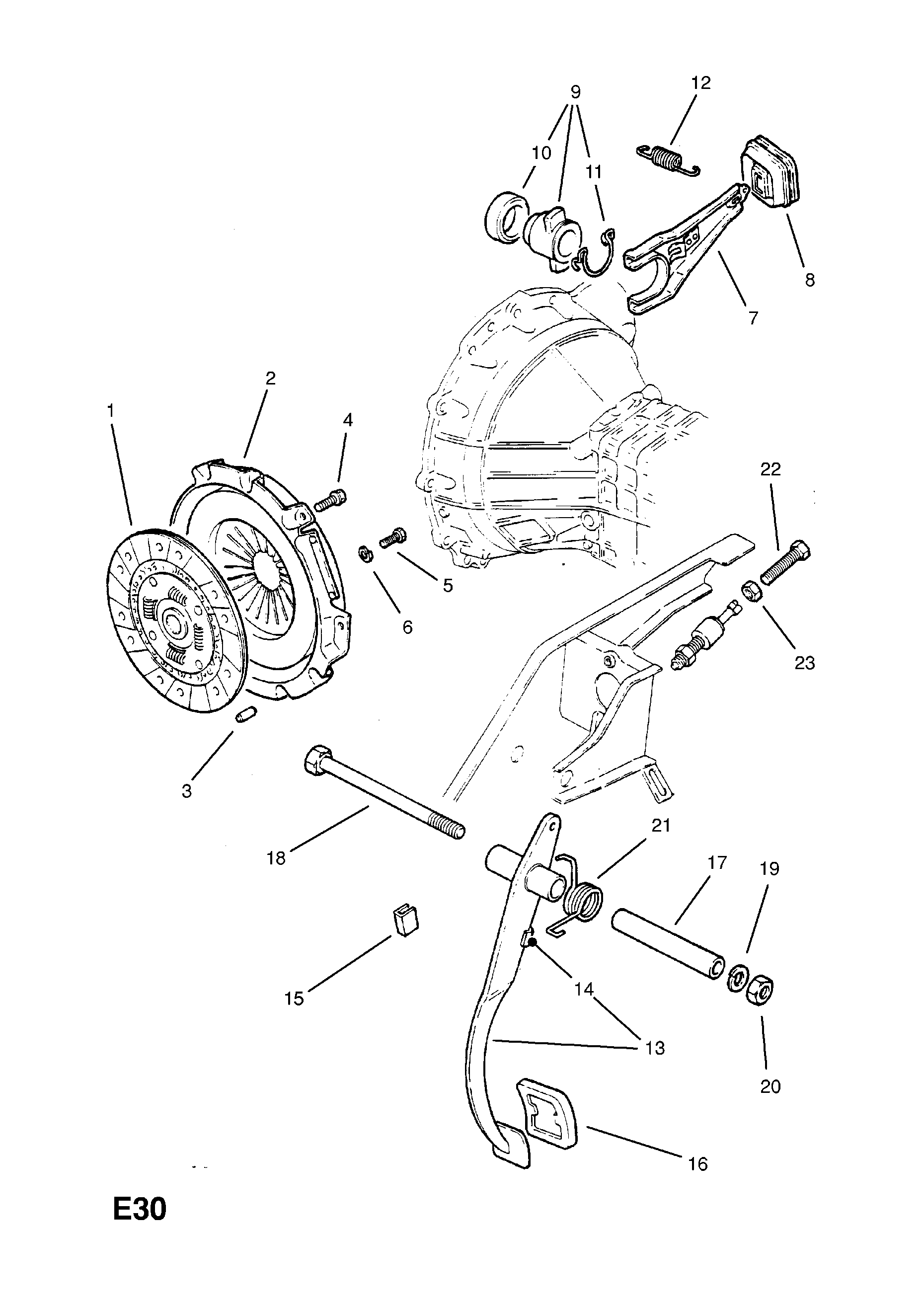

| 7 | 42 95 338 | 94411650 | FORK,ASSY.,CLUTCH (NLS.- NO REPLACEMENT PART) | 1 |
|
| 7 | 42 93 499 | 94020537 | FORK,ASSY.,CLUTCH (NLS.- NO REPLACEMENT PART) | 1 |
|
| 8 | 7 02 262 | 94156700 | COVER,DUST,FORK | 1 |
|
| 8 | 42 93 576 | 94024495 | COVER,DUST,FORK (NLS.- NO REPLACEMENT PART) | 1 |
|
| 9 | 42 95 552 | 94438300 | BLOCK,ASSY.,SHIFT | 1 |
|
| 9 | 42 93 579 | 94024828 | BLOCK,ASSY.,SHIFT (NLS.- NO REPLACEMENT PART) | 1 |
|
| 10 | 42 93 862 | 94101243 | -BEARING,CLUTCH RELEASE (NLS.- NO REPLACEMENT PART) | 1 |
|
| 10 | 42 93 481 | 94020016 | -BEARING,CLUTCH RELEASE (NLS.- NO REPLACEMENT PART) | 1 |
|
| 11 | 43 19 230 | 94020536 | -CLIP,BLOCK TO FORK (NLS.- USE 94311807) | 1 |
|
| 12 | 42 93 523 | 94021248 | SPRING,CLUTCH FORK RETURN (NLS.- NO REPLACEMENT PART) | 1 |
|
| 13 | 6 74 127 | 94142974 | PEDAL,ASSY.,CLUTCH,RHD (NLS.- NO REPLACEMENT PART) | 1 |
|
| 13 | 42 94 729 | 94250881 | PEDAL,ASSY.,CLUTCH,LHD (NLS.- NO REPLACEMENT PART) | 1 |
|
| 13 | 6 74 124 | 94366765 | PEDAL,ASSY.,CLUTCH,RHD (NLS.- USE 94142974) | 1 |
|
| ⤷ | 6 74 127 | 94142974 | PEDAL,ASSY.,CLUTCH,RHD (NLS.- NO REPLACEMENT PART) | 1 |
|
| 13 | 6 74 125 | 94366766 | PEDAL,ASSY.,CLUTCH,LHD (NLS.- USE 94164010) | 1 |
|
| 14 | 42 93 789 | 94032964 | -STOPPER,RUBBER (NLS.- NO REPLACEMENT PART) | 1 |
|
| 14 | 6 74 325 | 94009606 | -BOLT,STOPPER (NLS.- NO REPLACEMENT PART) | 1 |
|
| 15 | 42 93 724 | 94029874 | RUBBER,PEDAL STOPPER (NLS.- NO REPLACEMENT PART) | 1 |
|
| 16 | 42 94 579 | 94238618 | PAD,RUBBER (NLS.- NO REPLACEMENT PART) | 1 |
|
| 17 | 42 94 397 | 94226613 | SLEEVE (NLS.- NO REPLACEMENT PART) | 1 |
|
| 18 | 42 94 396 | 94226612 | PIN,FULCRUM,PEDAL TO BRACKET (NLS.- NO REPLACEMENT PART) | 1 |
|
| 19 | 7 02 908 | 94009235 | WASHER,PIN TO PEDAL (NLS.- NO REPLACEMENT PART) | 1 |
|
| 20 | 43 16 099 | 94009031 | NUT (NLS.- USE 91120657) | 1 |
|
| 21 | 42 94 395 | 94226611 | SPRING,RETURN (NLS.- USE 94367106) | 1 |
|
| 22 | 42 93 397 | 94002074 | BOLT,PEDAL STOPPER (NLS.- NO REPLACEMENT PART) | 1 |
|
| 23 | 7 59 951 | 94009073 | NUT (NLS.- USE 94048177) | 1 |
|
| 23 | 9 20 987 | 91120733 | NUT (NLS.- USE 11094853) | 1 |
|
